Volume: 19 Issue: 11 November 2021


Complete Remission of Refractory Immunothrombocytopenic Purpura After Tacrolimus Replacement With Cyclosporine in a Case of Living Related Liver Transplant


Immunothrombocytopenic purpura is a possible complication after liver transplant. The therapy for immunothrombocytopenic purpura after liver transplant is similar to that of primary immunothrom-bocytopenic purpura. This therapy consists of corticosteroids, intravenous immunoglobulin, and immunosuppressive agents such as cyclosporine and rituximab. There are a few cases of immunothrom-bocytopenic purpura in patients who recovered after cessation of tacrolimus administration. Here, we show an intractable case of immunothrombocytopenic purpura in a living related liver transplant recipient treated with some of these. We observed complete remission after switch of the immunosuppressive agent from tacrolimus to cyclosporine. The patient was an infant girl aged 18 months who underwent living related liver transplant for biliary atresia when she was 6 months old. Liver graft was a left lateral segment from her father. Purpura and severe thrombocytopenia developed after 11 months. There was no effect of the first-line therapies, as described in the Japan guidelines for immunothrom-bocytopenic purpura. Thrombocytopenia was extreme, as shown by a blood count of 0 platelets/?L. Administration of rituximab was started. However, her platelet count had not increased 8 weeks after rituximab initiation. As a trial therapy, we switched tacrolimus to cyclosporine. She showed complete remission 1 month after this drug conversion. Thus, a switch from tacrolimus to other immunosuppressive agents as a therapy for immunothrombocytopenic purpura after living related liver transplant should be considered.

Key words : Drug conversion, Immunosuppression, Purpura, Rituximab, Thrombocytopenia


Immunothrombocytopenic purpura (ITP) is a known complication that may occur after liver transplant (LT).1 The first line of therapy for ITP after LT does not differ from that of primary ITP. It consists of corticosteroids, intravenous immunoglobulin, and immunosuppressive agents such as cyclosporine and rituximab. However, a few cases of ITP reportedly resolved after tacrolimus replacement. Domenech and colleagues reported a severe case of Evans syndrome in which tacrolimus was replaced with cyclosporine, resulting in complete remission.2 Kaya and colleagues reported on the case of a tacrolimus-induced autoimmune hemolytic anemia detected in a patient 3 months after ITP diagnosis. In this case, the ITP was successfully controlled by reduction of tacrolimus dose; however, the patient developed autoimmune hemolytic anemia and recovered after tacrolimus was replaced with sirolimus.3

Herein, we present an intractable case of ITP after living related LT (LRLT), wherein the patient underwent a few of the aforementioned therapies. The patient achieved complete remission 1 month after the immunosuppressive agent tacrolimus was replaced with cyclosporine, suggesting the need to reconsider the immunosup-pressive agents used in the treatment of ITP after LRLT.

Case Report

This study presents the case of an 18-month-old female pediatric patient who received LRLT for biliary atresia when she was 6 months old. The graft was the left lateral segment from her father.

In addition to tacrolimus and prednisolone, the patient was given mycophenolate mofetil as an immunosuppressant after she experienced 2 acute cellular rejections. Purpura and severe thrombocy-topenia appeared 11 months after LRLT. Her platelet count was under 1000 platelets/?L before she visited our clinic; however, it was 219?000 platelets/?L at 2 weeks before the symptoms appeared. The white and red blood cell counts, along with her hemoglobin level, were within reference ranges. No hemolysis or abnormalities in blood coagulation ability were observed. The stool was negative for antibodies for Helicobacter pylori. The patient’s platelet-associated immunoglobulin G level was extremely high at 1050 ng immunoglobulin G per 107 platelet cells.

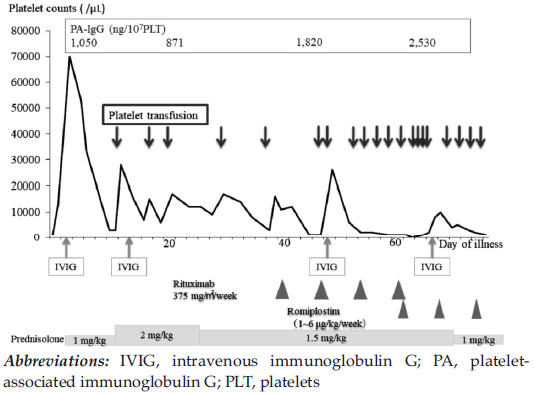

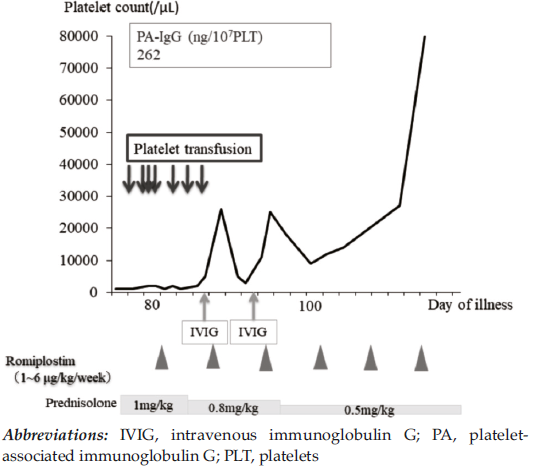

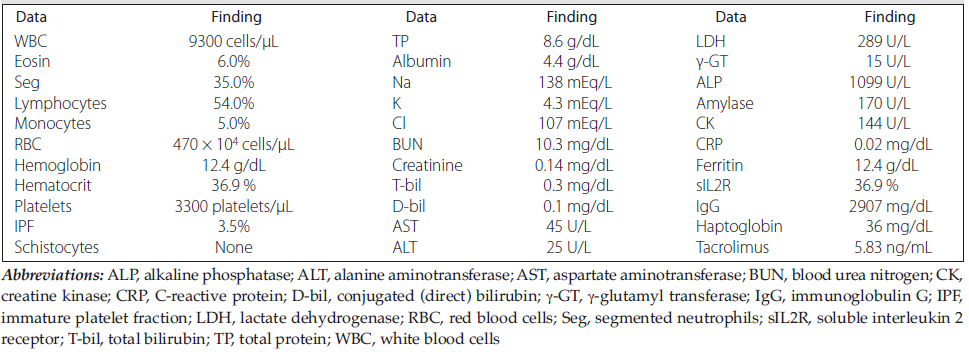

She was admitted to our hospital with the suspicion of ITP at 1 week after the symptoms appeared. There were no abnormal findings on her myelogram, with a normal number of blood megakaryocytes observed after a bone marrow biopsy at our hospital. The results of blood examination, including blood cell profile, are shown in Table 1. We diagnosed ITP in accordance with the Japanese diagnostic criteria for ITP. The patient’s clinical course is shown in Figure 1 and Figure 2. We started ITP therapy for the patient according to the Japanese treatment guidelines for ITP. Treatment with intravenous immunoglobulin and platelet cell transfusion resulted in a transient increase in platelet cell count; however, complete remission was not achieved. The patient’s platelet cell count remained under 10?000 platelets/?L, and she required a platelet cell transfusion once or twice every week.

Subsequently, the administration of prednisolone was increased from 0.2 to 2 mg/kg/day; however, this treatment was not effective. The patient’s thrombocytopenia worsened, with a platelet cell count between 0 and 2000 platelets/?L. Administration of rituximab was started on day 40 of illness; however, the patient’s platelet cell count did not increase for 8 weeks after initiation of rituximab. Romiplostim, a thrombopoietin receptor agonist, was initiated on day 62 of illness; however, this was not effective, and the patient’s platelet cell count remained at 0 platelets/?L. Consequently, we considered the possibility that the intractable ITP was a secondary effect of tacrolimus. Thus, on day 75 of illness, tacrolimus was replaced with cyclosporine on a trial basis, after informed consent was obtained from the patient’s parents. Her platelet cell count increased gradually 3 weeks after the drug conversion, and no abnormalities in liver function were observed. The patient was discharged on day 106 of illness in complete remission. The administration of romiplostim was terminated at day 126 of illness.


The first-line drugs of choice for the treatment of steroid-refractory ITP are rituximab or thrombopoietin receptor agonists. However, for refractory ITP in recipients of solid-organ transplant, clinicians should consider cessation of tacrolimus. In cases of autoimmune cytopenia after solid-organ transplant, tacrolimus may mediate antibody production and induce an autoimmune disease due to the downregulation of regulatory T cells.2,4

Some reports have shown cases of ITP and autoimmune hemolytic anemia that were succes-sfully controlled after cessation of tacrolimus.1-3 Kaya and colleagues have reported a case of autoimmune hemolytic anemia that developed after reduction of tacrolimus dose in response to ITP after LT.3 Teachey and colleagues reported 2 cases of autoimmune cytopenia after solid-organ transplant5 in which complete remission was achieved after tacrolimus was replaced with inhibitors of the mechanistic target of rapamycin (mTOR).3,5

Tacrolimus is a useful immunosuppressant to improve prognosis after LT by prevention of acute cellular rejection. However, long-term complications such as renal dysfunction, neurotoxicity, and diabetes are known adverse side effects of tacrolimus. As a new immunosuppressant for LT, the usefulness of mTOR inhibitors has been evaluated.6,7 Drug conversion from tacrolimus to mTOR inhibitors is a treatment option for tacrolimus-induced autoimmune cytopenia.3,5 Alternatively, a combination of mTOR inhibitors with low-dose tacrolimus may be a safer strategy.

In our patient, we did not choose administration of mTOR inhibitors because of inadequate experience with mTOR inhibitors in pediatric LRLT patients.8 Thereby, as a treatment for refractory ITP, we switched from tacrolimus to cyclosporine. Tacrolimus and cyclosporine are both classified as calcineurin inhibitors. However, these drugs differ in origin and structure.9 The immunosuppressive activity of tacrolimus is 50 to 100 times stronger than that of cyclosporine, especially in terms of the suppression of cytokine production. Compared with cyclosporine, tacrolimus shows greater suppression of the proliferation of immune cells and bone marrow cells.10 At our institute, we treated a patient with pure red cell aplasia after LRLT, and recovery occurred after tacrolimus was replaced with cyclosporine.11 Replacement of tacrolimus with cyclosporine is a significant trial therapy for patients with immune-mediated cytopenia.

Although there have been reports of ITP after LT, only 4 have shown complete remission after tacrolimus cessation.1-3,12 At our institute, about 150 pediatric patients underwent LRLT from 1998 to 2018, and 3 patients developed ITP. Our case is the only case that required cessation of tacrolimus administration to treat the ITP. Other patients have achieved complete remission by standard steroid administration or splenectomy.

The conversion of an immunosuppressive agent is an important consideration because this change may improve the prognoses for some patients, but there must be a careful assessment of the advantages and disadvantages of a change in immunosup-pressants. Because of results shown in our patient, in the future, we will consider conversion from cyclosporine to mTOR inhibitors because of the long-term complications of cyclosporine, which are similar to tacrolimus.


  1. Schoettler M, Elisofon SA, Kim HB, et al. Treatment and outcomes of immune cytopenias following solid organ transplant in children. Pediatr Blood Cancer. 2015;62(2):214-218. doi:10.1002/pbc.25215
    CrossRef - PubMed
  2. Domenech C, Mialou V, Galambrun C, et al. Successful treatment of Evans syndrome post liver transplant with splenectomy and switch from tacrolimus to cyclosporine. Transpl Int. 2008;21(4):397-399. doi:10.1111/j.1432-2277.2007.00619.x
    CrossRef - PubMed
  3. Kaya Z, Egritas O, Dalgic B. Tacrolimus-induced autoimmune hemolytic anemia in a previously reported child with history of thrombocytopenia following liver transplant. Exp Clin Transplant. 2018;16(3):355-356. doi:10.6002/ect.2017.0289
    CrossRef - PubMed
  4. Jonuleit H, Adema G, Schmitt E. Immune regulation by regulatory T cells: implications for transplantation. Transpl Immunol. 2003;11(3-4):267-276. doi:10.1016/S0966-3274(03)00057-1
    CrossRef - PubMed
  5. Teachey DT, Jubelirer T, Baluarte HJ, Wade A, Manno CS. Treatment with sirolimus ameliorates tacrolimus-induced autoimmune cytopenias after solid organ transplant. Pediatr Blood Cancer. 2009;53(6):1114-1116. doi:10.1002/pbc.22183
    CrossRef - PubMed
  6. Klintmalm GB, Nashan B. The role of mTOR inhibitors in liver transplantation: reviewing the evidence. J Transplant. 2014;2014:845438. doi:10.1155/2014/845438
    CrossRef - PubMed
  7. Kawahara T, Asthana S, Kneteman NM. m-TOR inhibitors: what role in liver transplantation? J Hepatol. 2011;55(6):1441-1451. doi:10.1016/j.jhep.2011.06.015
    CrossRef - PubMed
  8. Dumortier J, Couchonnal E, Lacaille F, et al. mTOR inhibitors in pediatric liver transplant recipients. Clin Res Hepatol Gastroenterol. 2019;43(4):403-409. doi:10.1016/j.clinre.2018.11.010
    CrossRef - PubMed
  9. Ho S, Clipstone N, Timmermann L, et al. The mechanism of action of cyclosporin A and FK506. Clin Immunol Immunopathol. 1996;80(3 Pt 2):S40-S45. doi:10.1006/clin.1996.0140
    CrossRef - PubMed
  10. Zhu X, Imamura M, Hashino S, et al. Enhancing and suppressive effects of immunosuppressants cyclosporin A, FK506, and KM2210 on the colony formation of murine bone marrow cells. Ann Hematol. 1995;71(6):301-306. doi:10.1007/BF01697983
    CrossRef - PubMed
  11. Watanabe S, Sakamoto R, Yamamoto H, et al. Pediatric pure red cell aplasia caused by tacrolimus after living-donor liver transplant. Exp Clin Transplant. 2020;18(7):838-841. doi:10.6002/ect.2019.0075
    CrossRef - PubMed
  12. Assy N, Rosenthal E, Hazani A, Etzioni A, Baruch Y. Human parvovirus B19 infection associated with idiopathic thrombocytopenic purpura in a child following liver transplantation. J Hepatol. 1997;27(5):934-936. doi:10.1016/s0168-8278(97)80334-0
    CrossRef - PubMed

Volume : 19
Issue : 11
Pages : 1228 - 1231
DOI : 10.6002/ect.2021.0272

PDF VIEW [469] KB.

From the Department of Pediatrics, Kumamoto University of Medicine, Kumamoto,Japan
Acknowledgements: The authors have not received any funding or grants in support of the presented research or for the preparation of this work and have no declarations of potential conflicts of interest.
Corresponding author: Rieko Sakamoto, Department of Pediatrics, Kumamoto University of Medicine, Honjo Chuo-ku, Kumamoto City, Japan
Phone: +81 96 373 5191
