Stereotactic Ablative Body Radiotherapy as a Bridge to Liver Transplant for Hepatocellular Carcinoma: Preliminary Results of Başkent University Experience


Objectives: Hepatocellular carcinoma is the most common primary liver tumor, with curative treatment options being liver transplant and resection. However, approximately 20% to 30% of patients have substantial disease progression while awaiting transplant. Here, we report our initial experience on stereotactic ablative body radiotherapy as a bridge to liver transplant for patients with hepatocellular carcinoma.
Materials and Methods: Seven patients with 9 lesions received stereotactic ablative body radiotherapy as a bridge treatment to transplant. All patients underwent radiofrequency ablation, transcatheter arterial chemoembolization, or hepatic resection before stereotactic ablative body radiotherapy. Magnetic resonance imaging was used to evaluate radiographic responses 1 month later.
Results: Median age of patients was 65 years (range, 63-71 years), median stereotactic ablative body radiotherapy dose was 45 Gy (range, 30-54 Gy; delivered in 3-5 fractions), and median tumor diameter was 17 mm (range, 12-30 mm). Before stereotactic ablative body radiotherapy, all patients underwent liver-directed therapies, including transcatheter arterial chemoembolization for 3 lesions, transcatheter arterial chemoembolization and radiofrequency ablation for 4 lesions, surgical resection for 1 lesion, and surgical resection plus transcatheter arterial chemoembolization for the remaining lesion. Patients showed no evidence of gastrointestinal toxicity or radiation-induced liver disease. Acute toxicity was negligible; all patients completed the treatment course. One month after stereotactic ablative body radiotherapy administration, response rates were assessed with magnetic resonance imaging, with complete responses obtained in 5 lesions (55.5%), partial responses for 2 lesions, and stable disease for 2 lesions. No disease progression was shown following stereotactic ablative body radiotherapy application.
Conclusions: Stereotactic ablative body radiotherapy is an effective, safe, and tolerable bridging therapy option. Although we observed an early response after treatment, exact response rates will not be known for at least 3 months following stereotactic ablative body radiotherapy. Thus, our findings should be confirmed through additional prospective studies with longer follow-up.

Key words : Hepatic malignancy, Radiotherapy, Stereotactic body radiotherapy


Hepatocellular carcinoma (HCC) is the most common primary hepatic malignancy and the fourth leading cause of cancer-related deaths in the world.1,2 Because of lack of symptoms in the early stages of the disease, HCC is frequently diagnosed at late stages, with a median survival time of 6 to 20 months and a 5-year survival rate of less than 12%.3

Surgery, either a partial hepatectomy or liver transplant, remains the gold standard for curative treatment for HCC.3-5 Liver transplant, which can be offered to patients with unresectable HCC regardless of the patient’s liver function, is associated with a 4-year posttransplant survival rate of 85% and recurrence-free survival rate of 92%.6,7 However, approximately 20% to 30% of patients still have substantial disease progression while awaiting transplant.8,9 Therefore, a bridge therapy is an important option for patients awaiting transplant due to the scarcity of donors and the great number of nonmalignant indications of liver transplant. Bridge therapies are typically used to prevent drop out of patients from wait lists and to allow downstaging of tumors so that patients with advanced HCC can be candidates for transplant. Various locoregional treatment strategies serve as bridging treatment, including transarterial chemoembolization (TACE), radiofrequency ablation (RFA), and radioembolization with yttrium-90 microspheres.8

Historically, radiation therapy has had a limited role in the management of HCC because radiation tolerance of the whole liver is far lower than the therapeutic effective doses required for tumor ablation.9,10 However, technological developments have allowed more conformal delivery of radiation therapy to the tumor while enormously sparing the healthy liver parenchyma. Stereotactic ablative body radiotherapy (SABR) is a technique in which a single or a limited number of high-dose radiation fractions are delivered to a small, precisely defined target. The beams converge on the target lesion, minimizing radiation exposure to the adjacent normal tissue. Stereotactic ablative body radiotherapy has been studied as a definitive local treatment option for both primary11,12 and metastatic liver tumors13; however, data on the role of SABR as a bridge to liver transplant are so far limited.8,14-18 Here, we report Başkent University’s initial experience on SABR as a bridge to liver transplant for patients with HCC.

Materials and Methods

Patient selection
This study included selected patients who were diagnosed with HCC and referred to the Liver Transplantation Center of Başkent University Hospital (Ankara, Turkey). All patients were potential candidates for local therapy before transplant. All cases were reviewed and discussed by a multidisciplinary team of expert liver transplant surgeons, radiation oncologists, interventional radiologist, and hepatobiliary system radiologists. Inclusion criteria were (1) histopathologically proven diagnosis of HCC; (2) patient Karnofsky Performance Status of ≥70; (3) lesion size of ≤6 cm in diameter or ≤3 lesions with a total diameter of ≤6 cm; (3) no extrahepatic metastases; (4) Child-Pugh class A or B; (5) tumor at least 1 cm away from stomach and intestinal mucosa or chest wall; and (6) no prior abdominal radiation therapy. We included patients with portal vein tumor thrombosis and patients who received other liver-directed therapies, including TACE, RFA, and surgery. Written informed consent was obtained from all patients. Our institutional review board approved this retrospective observational study.

Treatment planning
All patients were immobilized in supine position with arms above the head using a BodyFIX bluebag with vacuum wrap (Elekta). The use of an abdominal compression device attached to the body frame reduced liver motion caused by patient breathing. Before transplant, planning computed tomography (CT) scans were performed with 2- to 5-mm interslice reconstruction from the lung apex to lower aspect of the pelvis.

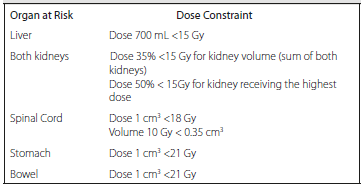

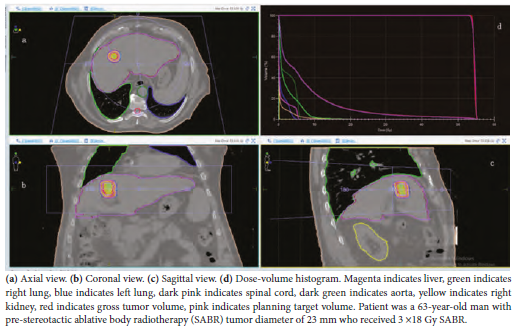

Target volumes and organs at risk were delineated, and treatment plans were calculated on the Monaco HD Treatment Planning (Elekta) platform. The gross tumor volume included macroscopic disease defined from contrast-enhanced planning CT scans. For better delineation of gross tumor volume, positron emission tomography-CT or magnetic resonance imaging were fused with contrast-enhanced CT. No expansion margin was added to the corresponding clinical target volume. For planning target volume (PTV), a minimum of 7 to 10 mm was added to the craniocaudal margin and 5 to 7 mm was added to the other margins. Organs at risk outlined and used during the optimization process were spinal cord, stomach, small and large bowel, duodenum, both kidneys, and whole liver (Figure 1). Dose constraints are summarized in Table 1.

Treatment with stereotactic ablative body radiotherapy
Treatment was delivered every other day. The dose was prescribed to be 90% isodose line, and the PTV coverage was set to be greater than 95% of the prescribed dose. The Monaco Treatment Planning system was used to calculate the plans, which used the Monte Carlo algorithm and a sliding window multileaf collimator delivery technique. All treatment plans were carried out in preparation for delivery with a VERSA-HD linear accelerator (Elekta). Volumetric modulated arc therapy plans included 2 or 3 arcs of 360 degrees. To overcome setup inaccuracies, all patients were treated with image-guided radiation therapy using daily cone-beam CT. Patient setup was realized using cone-beam CT with online couch adjustment using the HexaPOD evo radiation system (Elekta), which is guided by an infrared camera that enables submillimeter patient positioning accuracy in 6 degrees of freedom to correct translational errors (x, y, z) and rotational errors (roll, pitch, yaw). Instead of implantation of fiducial markers, 3-dimensional positions of the whole liver, bones, main blood vessels, and diaphragm were used as surrogates for tumor position. After automatic matching of cone-beam CT images to reference CT images, couch repositioning was performed, and manual refining was performed by the treating physician.

Response and toxicity evaluation
All patients were assessed during the entire course of SABR and at 1 month after the completion of SABR, with assessments continued at 3- to 4-month intervals for the first 2 years after SABR. Clinical evaluation, complete blood count, liver function, Child-Pugh score, toxicity, and imaging with contrast-enhanced dynamic magnetic resonance imaging were performed. Radiographic response to stereotactic body radiation therapy was assessed according to the modified Radiographic Evaluation Criteria in Solid Tumors criteria.19In-field failure was defined as disease progression or new enhancement within the PTV or at its margins. Toxicity outcomes were recorded during treatment and at each follow-up using the Common Terminology Criteria for Adverse Events version 4.03.


Patient and tumor characteristics

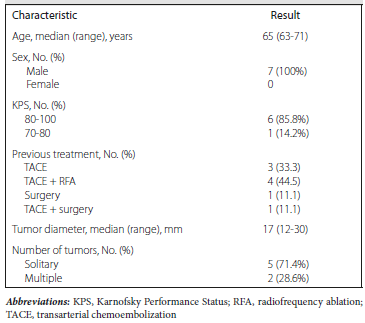

Seven patients with 9 lesions underwent SABR as a bridge to transplant. Table 2 lists the patient and tumor characteristics. Median age of patients was 65 years (range, 63-71 years), and all patients were men. All patients received SABR for single lesion except for 2 patients, who had 2 different synchronous lesions. There were no patients with portal vein thrombosis or major vessel invasion.

Stereotactic ablative body radiotherapy response
Magnetic resonance imaging was used to assess response rates 1 month after SABR. Table 3 displays the SABR response rates of all relevant patients. Complete radiologic response was observed in 5 (55.6%) of the 9 SABR courses, partial response in 2 (22.2%), and stable disease in 2 (22.2%). The overall response rate was 77.8%, and in-field tumor control rate was 100%. After application of SABR, there was no progression of disease.

Stereotactic ablative body radiotherapy response was well tolerated by all patients, and all courses were fully completed. Fatigue was the most common acute side effect. We found no evidence of acute gastrointestinal toxicity. Radiation-induced liver disease (RILD) was assessed using liver enzyme, bilirubin, and albumin levels; no significant differences were observed with these results after SABR completion and 1 month later.

Several liver-directed therapies have been used as a bridge to transplant in HCC patients. Each has some limitations in terms of the patient’s overall health; the location, number, and size of the lesions; and underlying liver function. As a result, a novel treatment strategy is required to reduce the dropout rate from transplant wait lists by controlling local recurrences during the waiting period. Stereotactic ablative body radiotherapy response is a highly conformal radiation therapy technique that allows higher radiation doses to be delivered to the tumor while sparing nearby healthy tissue. A small number of studies have been conducted to assess the role of SABR as a bridge to transplant in HCC, with most yielding promising results. In the present study, we reported our preliminary results as well as the safety and efficacy of SABR as another treatment option for bridging therapy. Our findings showed that SABR resulted in 100% tumor control while not worsening the underlying liver disease in patients.

Stereotactic ablative body radiotherapy response is an effective, noninvasive treatment compared with other local therapies for management of HCC. For instance, RFA has limited efficacy if the tumor is adjacent to a large vessel, and TACE is contraindicated if there is portal vein thrombosis.8 In addition to these limitations, invasive techniques have some morbid adverse effects, including bleeding, infection, ileus, transient elevations of aspartate aminotransferase and alanine aminotransferase and bilirubin values, and pain.8Stereotactic ablative body radiotherapy response has been shown to achieve 2-year local control rate of 74% to 100% and overall survival rate of 34% to 68.7%, compatible with other liver-directed therapies.8,14-23Moreover, SABR has been generally well-tolerated, with severe toxicity rates of generally less than 10% in patients with Child-Turcotte-Pugh class A disease.24-26

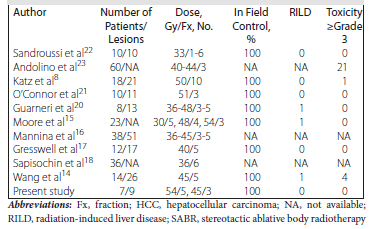

As shown in Table 4, SABR can provide excellent in-field tumor control rates at doses of 30 to 54 Gy in 3 to 6 fractions. Furthermore, SABR has been shown to achieve complete responses in 27% to 61.5% of treated lesions, resulting in improved overall and disease-free survival rates after transplant.8,14,21-23In a retrospective study that described the clinical outcomes and pathological evaluations of SABR in patients with advanced HCC, Wang and colleagues14 described 14 patients with 25 total HCC lesions with a median diameter of 4.45 cm. Treatment with SABR resulted in 100% field tumor control and 62.5% response rate. Four of the 14 patients (28.5%) had portal vein tumor thrombosis, and the authors accounted for it in the SABR target volume. In our present study, treatment with SABR also resulted in 100% field control and a response rate of 77.8%. Other studies have also reported 100% field tumor control.8,15,17,20-22

Because of concerns about radiation-induced liver toxicity, the role of radiation therapy in the management of HCC, particularly for bridging therapy, remains limited. Over the past 2 decades, a better understanding of the dose-volume effects of partial-liver radiation has allowed radiation oncologists to use normal tissue complication probability models to predict the risk of RILD associated with a given treatment plan.27,28As shown in Table 4, SABR has been well-tolerated when used as a bridge to transplant in patients with HCC. The maximum detected toxicity in the study from Wang and colleagues14 was 1 case of grade 3 thrombocytopenia and 2 cases of grade 3 to 4 hyperbilirubinemia. These side effects were attributed to potential causes, such as underlying cirrhosis, low normal liver volume, and the second course of irradiation. Furthermore, Child-Pugh class C patients were included in the study from Wang and colleagues. In the study by Wang and colleagues, 1 patient (6.3%) had RILD. According to Katz and colleagues,8 the most common side effect was fatigue, and no patients developed grade 3 toxicity or RILD. Guarneri and colleagues20 reported 8 patients with a total of 13 lesions who had SABR before transplant. One patient in the study by Guarneri and colleagues developed RILD at 1 month after treatment. Andolino and colleagues23 described the treatment of 60 patients with liver-confined HCC with SABR. Twenty-one patients in their study experienced grade 3 hematologic/hepatic toxicity. However, 17 of 21 patients with documented grade 3 hematologic/hepatic toxicity had previously experienced grade 2 dysfunction in that category. Eight patients had a 1-grade increase in hematologic/hepatic dysfunction. One patient developed grade 4 thrombocytopenia and hyperbilirubinemia despite having been previously diagnosed with grade 3 thrombocytopenia and grade 1 hyperbilirubinemia. We did not find any grade 3 toxicities or RILD in our study. We observed grade 1 thrombocytopenia in 2 patients; however, both of these 2 patients had low platelet counts at the start of SABR.

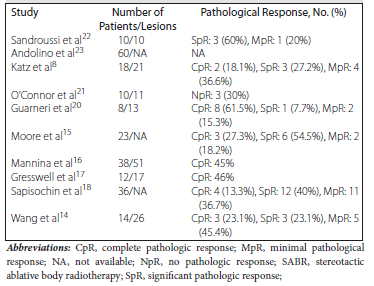

There are considerable variations between the pathological response rates after SABR. Table 5 shows the pathological response rates of SABR when used as a bridge to transplant. Wang and colleagues reported a 23.1% pathological complete response after SABR,14 whereas Guarneri and colleagues achieved a 61.5% pathological complete response rate.20 The complete pathological response rate has been shown to vary between 13.3% and 61.5%, and significant pathological response rate has been reported to be between 7.7% and 60% in various studies.8,15,17,20-22 We were unable to report our pathological response rates to SABR in the present study because we were reporting preliminary results.

There are some limitations to our study that should be mentioned. First, these results were preliminary findings and additional time would be needed to explain our final findings. Furthermore, our number of patients was small; however, our study is ongoing, and we have been treating new patients. However, data on the value of SABR as a bridge to HCC are still limited, and Başkent University’s experience contributes to the expansion of knowledge on this noninvasive, well-tolerated approach.


In conclusion, SABR is an effective, safe, and tolerable bridging treatment option before liver transplant. Although our patients showed an early response to SABR, the exact response rates will not be known for at least 3 months after SABR. As a result, our findings should be confirmed in future prospective studies with longer-term follow-up.


  1. Llovet JM, Villanueva A, Marrero JA, et al. Trial design and endpoints in hepatocellular carcinoma: AASLD Consensus Conference. Hepatology. 2021;73 Suppl 1:158-191. doi:10.1002/hep.31327
    CrossRef - PubMed
  2. Kanwal F, Singal AG. Surveillance for hepatocellular carcinoma: current best practice and future direction. Gastroenterology. 2019;157(1):54-64. doi:10.1053/j.gastro.2019.02.049
    CrossRef - PubMed
  3. Haberal M, Akdur A, Moray G, et al. Expanded criteria for hepatocellular carcinoma in liver transplant. In: Hakim N, Haberal M, Maluf D (Eds). Transplantation Surgery. 2nd ed. Springer Nature Switzerland; 2021:249-254.
    CrossRef - PubMed
  4. Haberal M, Emiroglu R, Karakayali H, et al. Expanded criteria for hepatocellular carcinoma and liver transplantation. Int Surg. 2007;92(2):110-115.
    CrossRef - PubMed
  5. Ma KW, Cheung TT. Surgical resection of localized hepatocellular carcinoma: patient selection and special consideration. J Hepatocell Carcinoma. 2017;4:1-9. doi:10.2147/JHC.S96085
    CrossRef - PubMed
  6. Mazzaferro V, Regalia E, Doci R, et al. Liver transplantation for the treatment of small hepatocellular carcinomas in patients with cirrhosis. N Engl J Med. 1996;334(11):693-699. doi:10.1056/NEJM199603143341104
    CrossRef - PubMed
  7. Mazzaferro V, Llovet JM, Miceli R, et al. Predicting survival after liver transplantation in patients with hepatocellular carcinoma beyond the Milan criteria: a retrospective, exploratory analysis. Lancet Oncol. 2009;10(1):35-43. doi:10.1016/S1470-2045(08)70284-5
    CrossRef - PubMed
  8. Katz AW, Chawla S, Qu Z, Kashyap R, Milano MT, Hezel AF. Stereotactic hypofractionated radiation therapy as a bridge to transplantation for hepatocellular carcinoma: clinical outcome and pathologic correlation. Int J Radiat Oncol Biol Phys. 2012;83(3):895-900. doi:10.1016/j.ijrobp.2011.08.032
    CrossRef - PubMed
  9. Llovet JM, Bruix J, Gores GJ. Surgical resection versus transplantation for early hepatocellular carcinoma: clues for the best strategy. Hepatology. 2000;31(4):1019-1021. doi:10.1053/he.2000.6959
    CrossRef - PubMed
  10. Lawrence TS, Robertson JM, Anscher MS, Jirtle RL, Ensminger WD, Fajardo LF. Hepatic toxicity resulting from cancer treatment. Int J Radiat Oncol Biol Phys. 1995;31(5):1237-1248. doi:10.1016/0360-3016(94)00418-K
    CrossRef - PubMed
  11. Wahl DR, Stenmark MH, Tao Y, et al. Outcomes after stereotactic body radiotherapy or radiofrequency ablation for hepatocellular carcinoma. J Clin Oncol. 2016;34(5):452-459. doi:10.1200/JCO.2015.61.4925
    CrossRef - PubMed
  12. Yoon SM, Lim YS, Park MJ, et al. Stereotactic body radiation therapy as an alternative treatment for small hepatocellular carcinoma. PLoS One. 2013;8(11):e79854. doi:10.1371/journal.pone.0079854
    CrossRef - PubMed
  13. Mazzola R, Fersino S, Alongi P, et al. Stereotactic body radiation therapy for liver oligometastases: predictive factors of local response by (18)F-FDG-PET/CT. Br J Radiol. 2018;91(1088):20180058. doi:10.1259/bjr.20180058
    CrossRef - PubMed
  14. Wang YF, Dai YH, Lin CS, et al. Clinical outcome and pathologic correlation of stereotactic body radiation therapy as a bridge to transplantation for advanced hepatocellular carcinoma: a case series. Radiat Oncol. 2021;16(1):15. doi:10.1186/s13014-020-01739-5
    CrossRef - PubMed
  15. Moore A, Cohen-Naftaly M, Tobar A, et al. Stereotactic body radiation therapy (SBRT) for definitive treatment and as a bridge to liver transplantation in early stage inoperable Hepatocellular carcinoma. Radiat Oncol. 2017;12(1):163. doi:10.1186/s13014-017-0899-4
    CrossRef - PubMed
  16. Mannina EM, Cardenes HR, Lasley FD, et al. Role of stereotactic body radiation therapy before orthotopic liver transplantation: retrospective evaluation of pathologic response and outcomes. Int J Radiat Oncol Biol Phys. 2017;97(5):931-938. doi:10.1016/j.ijrobp.2016.12.036
    CrossRef - PubMed
  17. Gresswell S, Tobillo R, Hasan S, et al. Stereotactic body radiotherapy used as a bridge to liver transplant in patients with hepatocellular carcinoma and Child-Pugh score >/=8 cirrhosis. J Radiosurg SBRT. 2018;5(4):261-267.
    CrossRef - PubMed
  18. Sapisochin G, Barry A, Doherty M, et al. Stereotactic body radiotherapy vs. TACE or RFA as a bridge to transplant in patients with hepatocellular carcinoma. An intention-to-treat analysis. J Hepatol. 2017;67(1):92-99. doi:10.1016/j.jhep.2017.02.022
    CrossRef - PubMed
  19. Lencioni R, Llovet JM. Modified RECIST (mRECIST) assessment for hepatocellular carcinoma. Semin Liver Dis. 2010;30(1):52-60. doi:10.1055/s-0030-1247132
    CrossRef - PubMed
  20. Guarneri A, Franco P, Romagnoli R, et al. Stereotactic ablative radiation therapy prior to liver transplantation in hepatocellular carcinoma. Radiol Med. 2016;121(11):873-881. doi:10.1007/s11547-016-0670-1
    CrossRef - PubMed
  21. O'Connor JK, Trotter J, Davis GL, Dempster J, Klintmalm GB, Goldstein RM. Long-term outcomes of stereotactic body radiation therapy in the treatment of hepatocellular cancer as a bridge to transplantation. Liver Transpl. 2012;18(8):949-954. doi:10.1002/lt.23439
    CrossRef - PubMed
  22. Sandroussi C, Dawson LA, Lee M, et al. Radiotherapy as a bridge to liver transplantation for hepatocellular carcinoma. Transpl Int. 2010;23(3):299-306. doi:10.1111/j.1432-2277.2009.00980.x
    CrossRef - PubMed
  23. Andolino DL, Johnson CS, Maluccio M, et al. Stereotactic body radiotherapy for primary hepatocellular carcinoma. Int J Radiat Oncol Biol Phys. 2011;81(4):e447-e453. doi:10.1016/j.ijrobp.2011.04.011
    CrossRef - PubMed
  24. Bujold A, Massey CA, Kim JJ, et al. Sequential phase I and II trials of stereotactic body radiotherapy for locally advanced hepatocellular carcinoma. J Clin Oncol. 2013;31(13):1631-1639. doi:10.1200/JCO.2012.44.1659
    CrossRef - PubMed
  25. Kang JK, Kim MS, Cho CK, et al. Stereotactic body radiation therapy for inoperable hepatocellular carcinoma as a local salvage treatment after incomplete transarterial chemoembolization. Cancer. 2012;118(21):5424-5431. doi:10.1002/cncr.27533
    CrossRef - PubMed
  26. Chan AO, Yuen MF, Hui CK, Tso WK, Lai CL. A prospective study regarding the complications of transcatheter intraarterial lipiodol chemoembolization in patients with hepatocellular carcinoma. Cancer. 2002;94(6):1747-1752. doi:10.1002/cncr.10407
    CrossRef - PubMed
  27. Son SH, Choi BO, Ryu MR, et al. Stereotactic body radiotherapy for patients with unresectable primary hepatocellular carcinoma: dose-volumetric parameters predicting the hepatic complication. Int J Radiat Oncol Biol Phys. 2010;78(4):1073-1080. doi:10.1016/j.ijrobp.2009.09.009
    CrossRef - PubMed
  28. Jung J, Yoon SM, Kim SY, et al. Radiation-induced liver disease after stereotactic body radiotherapy for small hepatocellular carcinoma: clinical and dose-volumetric parameters. Radiat Oncol. 2013;8:249. doi:10.1186/1748-717X-8-249
    CrossRef - PubMed
