One-Suture, 1-Knot Technique in Renal Vascular Transplant

Objectives: We describe the results of our 1-suture, 1-knot technique for vascular anastomosis in renal transplant. This technique can be used for both of the arterial and venous anastomoses.

Materials and Methods: Between May 2006 and June 2008, a total of 386 renal transplants were done in our center, using a 1-suture, 1-knot technique. Intraoperative data including the warm and cold ischemic time, arterial and venous anastomotic time, and any early and late postoperative complications in the follow-up were recorded.

Results: Mean age of recipients was 37 years. Mean kidney warm and cold ischemia time was 4.8 and 26.2 minutes. Mean arterial and venous anastomotic time was 5.1 and 7.2 minutes. No vascular complications were seen in the early postoperative period. Delayed graft function was diagnosed in 36 patients, but a renal scan showed good perfusion of the allografts of these cases. In the mean follow-up of 18.5 months, we did not encounter any case of renal artery thrombosis or any suspected arterial stenosis.

Conclusions: The 1-suture, 1-knot technique is a safe, rapid, and easy method for arterial and venous anastomosis of the renal allograft with low complication rates. It is especially valuable in obese patients and recipients with deep iliac fossa.


Key words : Kidney transplantation, Vascular anastomosis

Introduction

Kidney transplant is the treatment of choice for most cases of end-stage renal disease (1). Transplant surgeons use different techniques for arterial and venous anastomoses in the recipients. In 1902, Carrel described a 3-point anastomosis technique for allograft arterial anastomosis (2). Since then, others have described a 2-point anastomosis, a 4-quadrant technique, a corner-saving technique, nonsuture techniques, and other methods for vascular anastomoses in kidney transplant (3, 4, 5, 6). Most of these techniques were invented to reduce the anastomotic and ischemic time of allograft, while providing good patency, especially in the case of arterial anastomoses.

We describe our results of a 1-suture, 1-knot technique for vascular anastomosis in renal transplant. This technique can be used for arterial and venous anastomoses.

Materials and Methods

Between May 2006 and June 2008, a total of 386 renal transplants were done in our center using the 1-suture, 1-knot technique.

Technique: After developing an extraperitoneal space in the iliac fossa and mobilizing the external iliac vein, the kidney is put in the iliac fossa in its final place. The renal vein is anastomosed end-to-side, usually to the external iliac vein, but the site of arterial anastomosis is selected with regard to the allograft position. Both anastomoses are made with 6-0 monofilament nylon sutures.

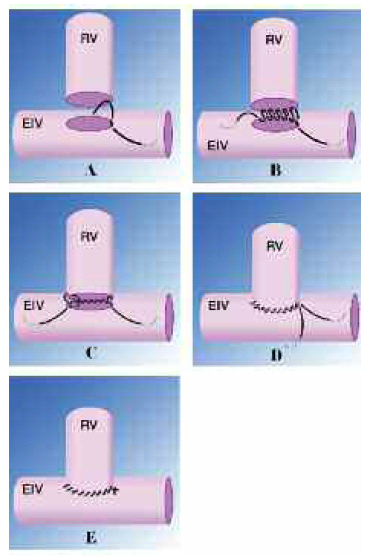

We explain here the end-to-side anastomosis of renal vein to external iliac vein with 1-suture, 1-knot technique (Figures 1 and 2). The same method can be used for end-to-end or end-to-side anastomosis of the renal artery, with or without spatulation (Figure 3). The anastomosis is begun with an in-out and out-in suture at 1 corner of venotomy incision (Figure 1-A). Then, the posterior wall is sutured in a running fashion from the intraluminal space of external iliac vein (Figure 1-B). After finishing the anastomosis of posterior wall, the anterior wall is sewn with the same suture material while pulling the edge of the graft side and the recipient side. This is done without putting any knot at the other corner of venotomy incision (Figure 1-C). Finally, the anastomosis is finished at the same point of the beginning (Figure 1-D). After the last suture, both ends of the suture material are pulled gently, but putting the knot is delayed until unclamping of the external iliac vein (or the artery, in the case of an arterial anastomosis). This permits the anastomosis site to become expanded to its widest size, and prevents a purse-string effect at the anastomosis site (Figure 1-E).

Ureteral anastomosis is done by a modified Lich technique. In all of the cases, ureteral stent is placed, and aspirin (100 mg/d) is begun on postoperative day 1. Intraoperative data including the warm and cold ischemic times, and arterial and venous anastomotic times, are recorded. Follow-up consists of color Doppler ultrasonographic examination of the anastomosis site on postoperative days 1 and 30, and measuring blood pressure and serum creatinine level daily until postoperative day 10; then, at 1, 3, 6, and 12 months after transplant, and then every 6 months if there was any clinical problem.

Results

Mean age of recipients was 37 years (range, 6-71 years). A total of 258 patients were men (66.8%) and 128 were women (33.2%). All of the donor nephrectomies were done by laparoscopy. Mean kidney warm and cold ischemia time was 4.8 minutes (range, 3-11 minutes) and 26.2 minutes (range, 15-55 minutes). Mean arterial and venous anastomotic time was 5.1 minutes (range, 3-9 minutes) and 7.2 minutes (range, 3-12 minutes). A total of 370 grafts had 1 artery (95.8%) and 16 had 2 renal arteries (4.2%). Allograft renal artery was anastomosed to the common iliac artery in 194 (50.2%), the internal iliac artery in 186 (48.1%), the external iliac artery in 2 (0.5%), and the aorta in 4 recipients (1%). Vein anastomosis sites included the external iliac vein in 382 (99%), the common iliac vein in 2 (0.5%), and the inferior vena cava in 2 recipients (0.5%). It was the first, second, and third kidney transplant in 378, 6, and 2 of the patients.

No vascular complications were seen in the early postoperative period. Measuring the velocity of blood flow at the anastomotic sites by color Doppler ultrasonography on days 1 and 30 after the transplant showed no evidence of arterial or venous thrombosis, or significant arterial stenosis in any of the patients.

During a mean follow-up of 18.5 months (range, 4-26 months), the mean serum creatinine level on the 3, 30, 90, 180, and 360 days after the operation was 160 µmol/L (range, 45-1003 µmol/L), 140 µmol/L (range, 36-1100 µmol/L), 120 µmol/L (range, 63-490 µmol/L), 120 µmol/L (range, 54-730 µmol/L), and 110 µmol/L (range, 79-250 µmol/L).

Delayed graft function (defined as serum creatinine level of > 310 mg/dL on the third day after transplant) was diagnosed in 36 patients, but a renal scan showed good perfusion of the allograft in all of these cases. Seventeen recipients returned to dialysis because of chromic rejection. One-year recipient survival was 96.8%. The most-common causes of death were cardiovascular disease and infection.

During follow-up, we did not encounter any case of renal artery thrombosis or any suspected arterial stenosis according to the clinical presentations. Renal vein thrombosis was found in 1 patient 3 months after operation. He was a 7-year-old recipient who had been discharged with normal creatinine, but was admitted because of diarrhea, vomiting, high-grade fever, and anuria, 3 months after the operation. Renal scan showed a nonfunctioning allograft and color Doppler ultrasonography confirmed renal vein thrombosis.

Discussion

After the introduction of the Carrel patch technique for end-to-end anastomosis of allograft arteries in 1902 (2), many transplant surgeons have presented their own technique for vascular anastomosis in these patients (3-7). Most of these efforts have been made to reduce kidney ischemic time and risk of transplant artery stenosis, because both warm and cold ischemic time and renal artery stenosis may lead to allograft dysfunction (8-11).

Mital and associates, in 1996, performed arterial and venous anastomoses in a kidney recipient using 4-stay sutures and several vascular clips for each anastomosis. The time taken for each anastomosis was 8 minutes, and the authors concluded that it is a safe, easy and rapid method of renal vascular anastomosis (12).

Jones presented a sutureless vascular anastomosis technique using vascular clips in 21 recipients. In comparison with conventional running suture technique, the ischemic period reduced by 51% when clips were used for arterial and venous anastomosis (9).

Ye and associates performed an arterial anastomosis with titanium ring pin staplers in 36 kidney recipients. This technique was safe and time-saving, but it was not suitable for end-to-side or side-to-side anastomoses, severely calcified, or atheromatous arteries and pediatric renal transplant (6).

Zomorrodi and associates compared the blood flow in allograft renal arteries anastomosed with 2 different techniques. In 1 group, they used a 2-corner continuous suture technique, and in the other, they used a combined suture technique (two-thirds of the artery diameter with continuous suture and one-third with interrupted sutures) was used. The difference in blood flow velocity in 2 groups was not statistically significant, and they concluded that other factors (such as gentle handling of tissue, enough spatulation, margin reversion, and comparable diameter of the anastomosed vessels) may be more-important in preventing transplant artery stenosis than the type of suture technique (10).

Haberal and associates used a corner-saving technique for arterial anastomosis of allograft kidneys in 183 recipients. In only 1 patient was renal arterial stenosis seen, and no case of arterial thrombosis was encountered. They concluded that this technique is a safe and easy method of arterial anastomosis, and will decrease the rate of vascular complications (5).

We had no cases of vascular complications in the early postoperative period in our patients. Allograft arterial stenosis should be suspected in any recipient who presents with new onset or severe hypertension refractory to medical therapy, unexplained graft dysfunction, and new audible bruit over the graft. Based on these clinical scenarios, we found no cases of renal artery stenosis in the recipients. During follow-up, we encountered no case of arterial, and only 1 case of renal vein thrombosis, in our patients. This shows safety and good patency of anastomosis using 1-suture, 1-knot technique. There are some other important advantages using this method for allograft vascular anastomosis:



  1. The technique is fast, easy to use, and easy to learn.
  2. It can be used for both arterial and venous anastomoses.
  3. It can be used for both end-to-end and end-to-side anastomoses and in pediatric and adult transplants.
  4. Probably the most-important advantage of this technique is that the whole procedure is done while the kidney is in its final position in the iliac fossa. Both posterior and anterior walls of the arterial and venous anastomoses are sewn from the anterior aspect, and there is no need to turn the kidney medial and lateral to anastomose the posterior and anterior walls. This is valuable in obese patients and any other recipients who have deep iliac fossa. In these patients, posterior wall suturing is difficult with conventional 4- or 2-corner methods and must have excessive manipulation of the graft and anastomosis sites.
  5. Because the posterior wall is sewn from the intraluminal space of the anastomosis site, this technique avoids any possibility of the posterior or anterior wall being caught up in the suture line, while the opposite wall is being sutured.



Conclusions

One-suture, 1-knot technique is a safe, rapid, and easy method for arterial and venous anastomosis of renal allograft with a low complication rate. It can be used in children and adults, and is especially valuable in obese patients and recipients with deep iliac fossa. We recommend this method for almost all recipients


References:

  1. Jofré R, López-Gómez JM, Moreno F, Sanz-Guajardo D, Valderrábano F. Changes in quality of life after renal transplantation. Am J Kidney Dis. 1998;32(1):93-100.
  2. Barry JM,Morris PJ. Surgical techniques of renal transplantation. In: Morris PJ, Knechte SJ, eds. Kidney Transplantation. Philadelphia, PA: Saunders; 2008:161.
  3. Lee HM. Surgical techniques of renal transplantation. In Morris PJ, ed. Kidney Transplantation. London, UK; Academic Press/Grune & Statton; 1979:145.
  4. Haberal M, Karakayali H, Bilgin N, Moray G, Arslan G, Büyükpamukçu N. Four-quadrant running-suture arterial anastomosis technique in renal transplantation: a preliminary report. Transplant Proc. 1996;28(4):2334-2335.
  5. Haberal M, Moray G, Sevmis S, et al. Corner-saving renal artery anastomosis for renal transplantation. Transplant Proc. 2008;40(1):145-147.
  6. Ye G, Mo HG, Wang ZH, Yi SH, Wang XW, Zhang YF. Arterial anastomosis without sutures using ring pin stapler for clinical renal transplantation: comparison with suture anastomosis. J Urol. 2006;175(2):636-640; discussion 640.
  7. Khauli RB. Surgical aspects of renal transplantation: new approaches. Urol Clin North Am. 1994;21(2):321-341.
  8. Halimi JM, Al-Najjar A, Buchler M, et al. Transplant renal artery stenosis: potential role of ischemia/reperfusion injury and long-term outcome following angioplasty. J Urol. 1999;161(1):28-32.
  9. Jones JW. A new anastomotic technique in renal transplants reduces warm ischemia time. Clin Transplant. 1998;12(1):70-72.
  10. Zomorrodi A, Bohluli A, Tarzamany MK. Evaluation of blood flow in allograft renal arteries anastomosed with two different techniques. Saudi J Kidney Dis Transpl. 2008;19(1):26-31.
  11. Sieńko J, Wiśniewska M, Ostrowski M, et al. Impact of selected factors on early graft function in patients after renal transplantation. Transplant Proc. 2003;35(6):2167-2169.
  12. Mital D, Foster PF, Jensik SC, et al. Renal transplantation without sutures using the vascular clipping system for renal artery and vein anastomosis--a new technique. Transplantation. 1996;62(8):1171-1173.
